Hager AC Charger

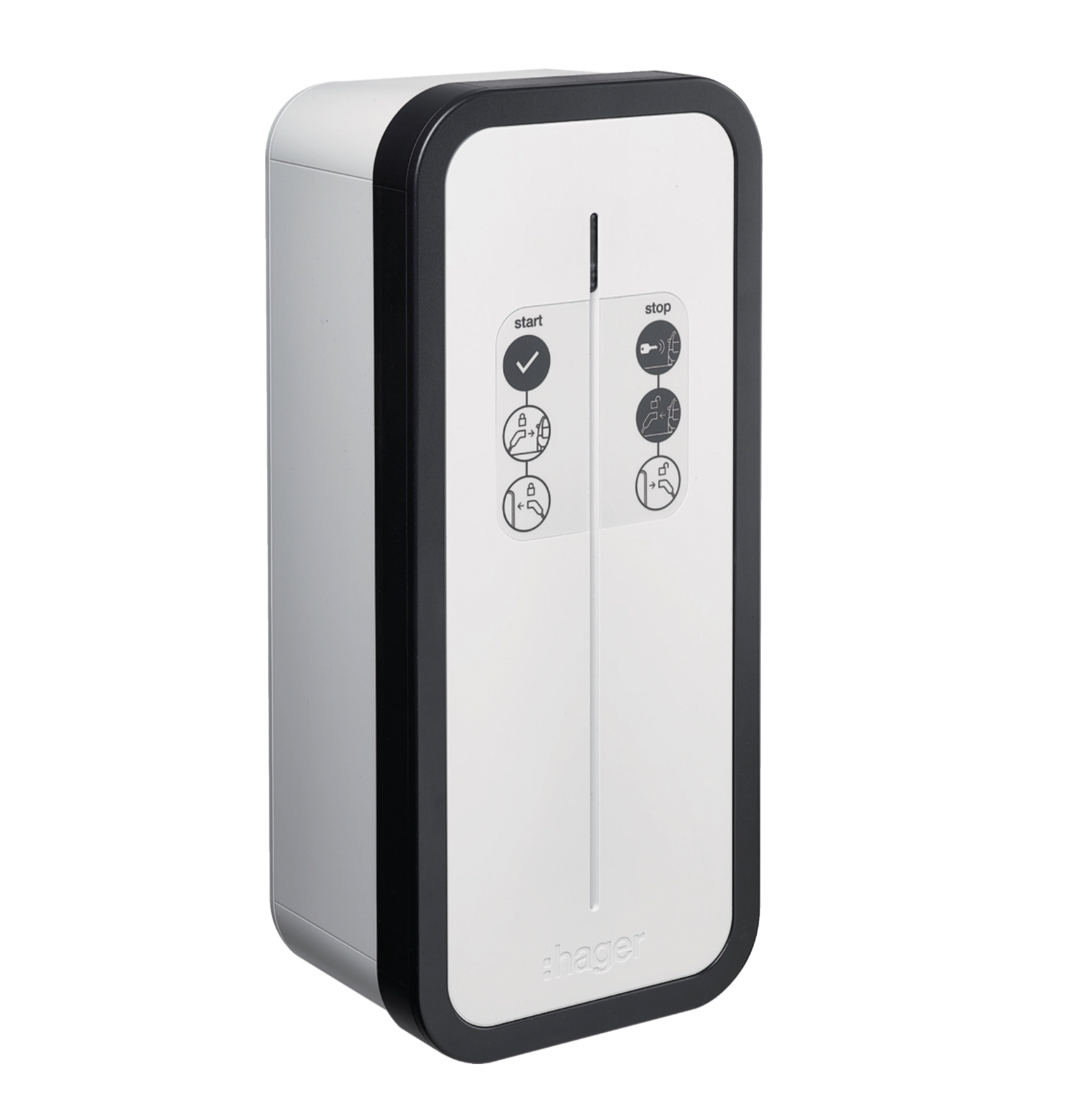

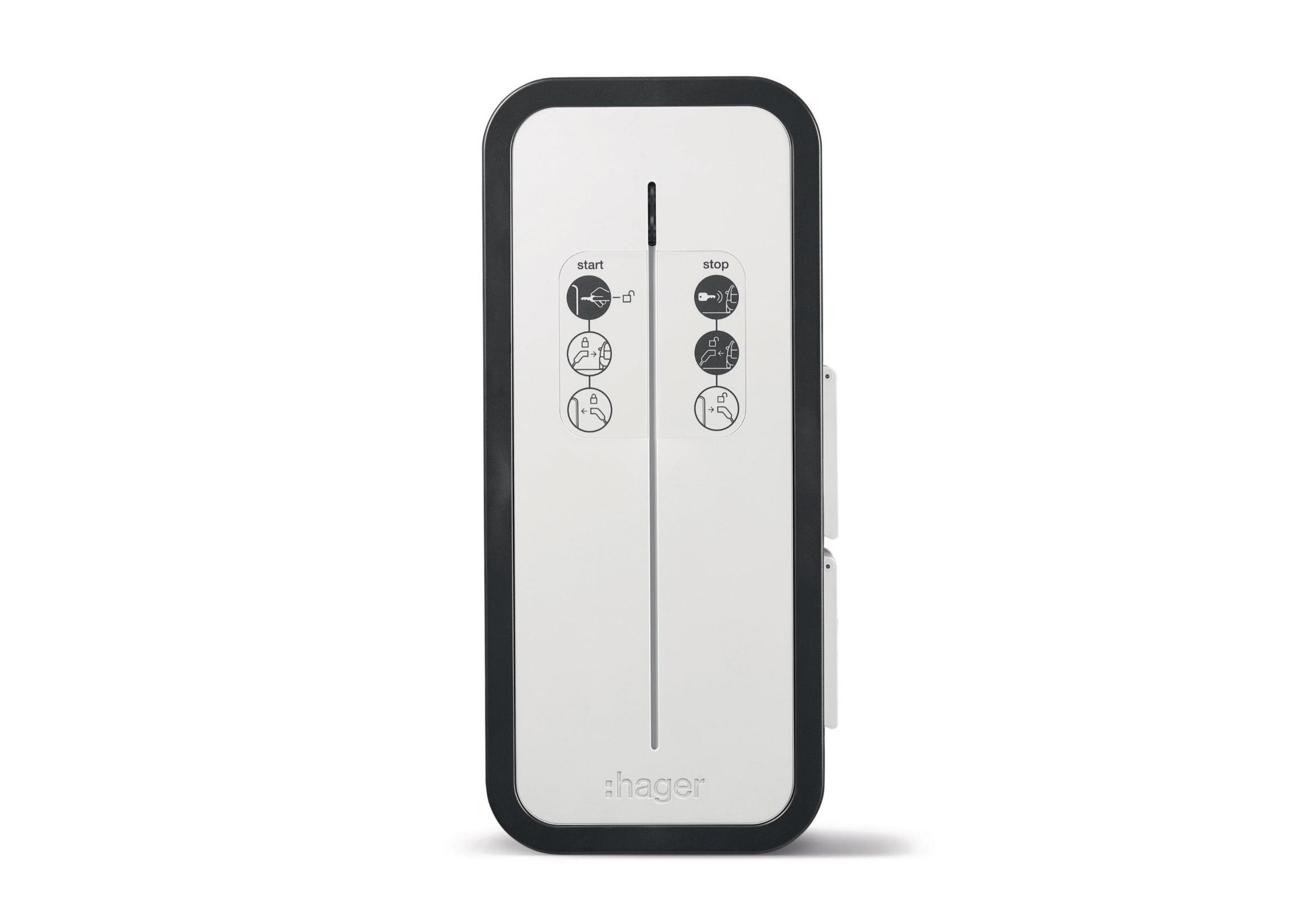

Hager Home Charger – Wall Mount 22kW

The Hager Home Charger is an AC EV charging station designed to efficiently power your electric vehicle at home.
With a power output of up to 22kW, it ensures fast and reliable charging, compatible with all Type 2 charging cables.

Usage

• Plug & Charge functionality.
• Designed for wall-mounted installation.
• Suitable for both indoor and outdoor environments (IP54 rated).
• Always use accessories provided by the manufacturer or those compliant with local regulations.

AC Nominal Input

• Phases/Lines: 3 phase + neutral
• Rated Voltage: 400V ±10%
• Rated Current: 32A
• Frequency: 50 / 60 Hz

AC Nominal Output

• Output Voltage: 400V ±10%
• Output Current: Up to 32A
• Output Power: Up to 22kW

Environmental Index

• Operating Temperature: –30°C ~ +50°C
• Working Humidity: 5%~95% without condensation
• Working Altitude: <2000m
• IP Rating: IP54
• Mounting Method: Wall-mounted

Dimensions & Weight

• Product Dimensions (W x H x D): 250 mm x 549 mm x 173 mm
• Net Weight: 8 kg
