ABB – Terra AC Wallbox type 2

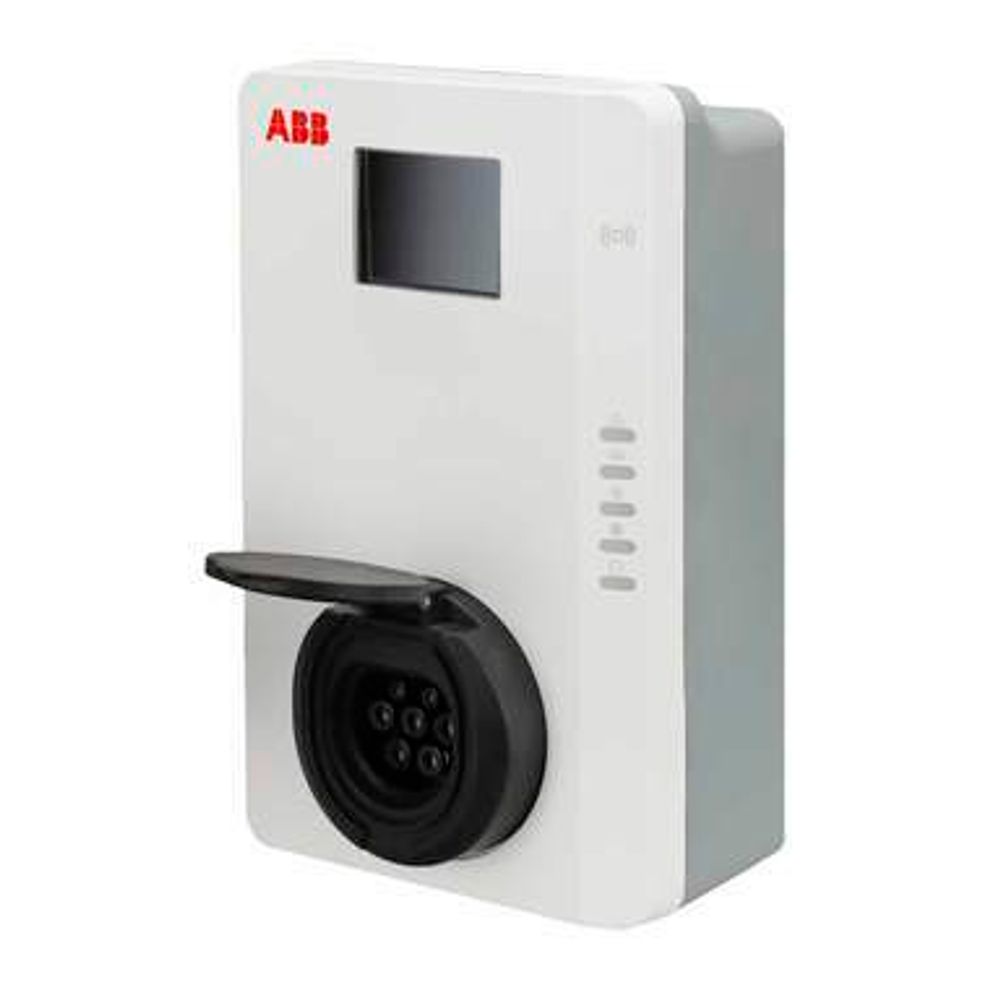

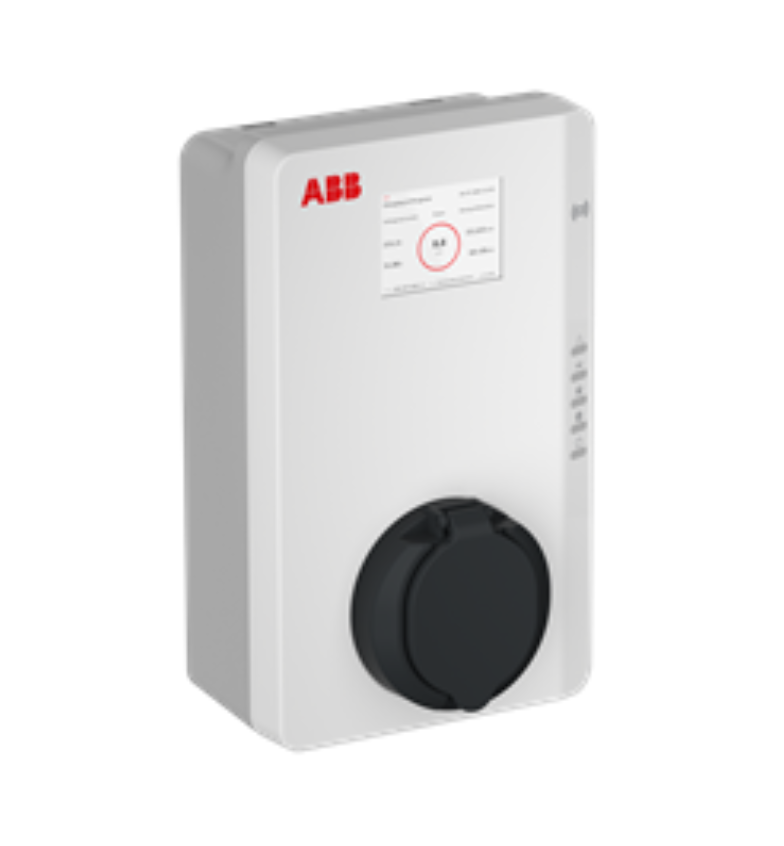

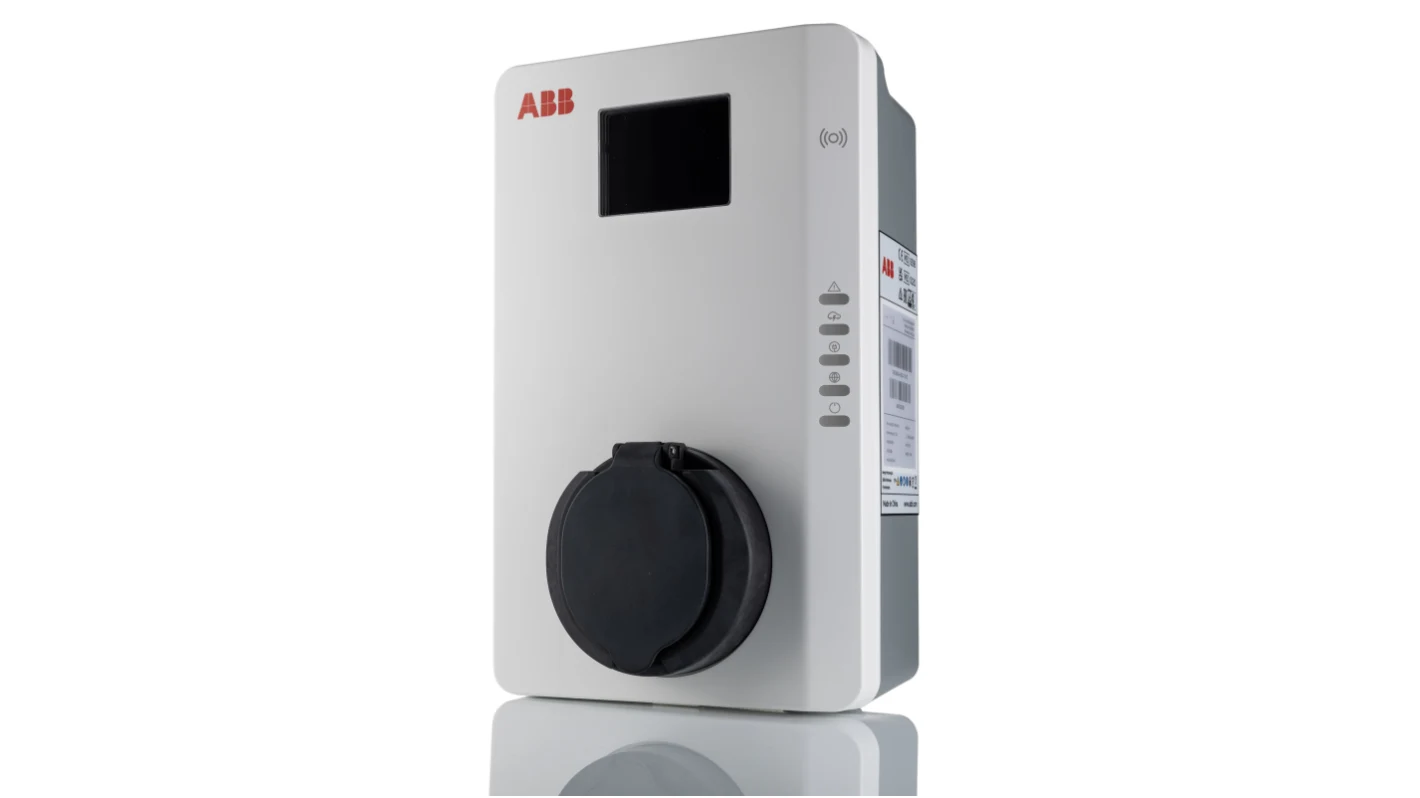

ABB Terra AC Wallbox EV Charger

Experience seamless and efficient electric vehicle (EV) charging with the ABB Terra AC Wallbox, model TAC-W22-S-R-C-0. Designed for both home and commercial use, this state-of-the-art charger combines advanced technology with user-friendly features, ensuring your EV is always ready to go.

Key Features:

High-Power Charging:

With a nominal output power of 22 kW and a 3-phase 32 A input, this charger delivers rapid and efficient charging, reducing downtime and keeping you on the move.

Type 2 Socket with Shutter:

Compatible with a wide range of EVs, the Type 2 socket ensures safe and secure connections every time.

Smart Connectivity:

Stay connected with integrated Wi-Fi, Ethernet, Bluetooth, Modbus, and 4G. The charger supports OCPP 1.6 protocol for seamless integration with various back-end systems.

Secure Authentication:

Access control is made easy with RFID and app-based authentication, providing you with flexible and secure options.

Versatile Installation:

Suitable for both indoor and outdoor use, the charger features a robust plastic housing with IP54 protection and IK08 impact resistance, ensuring durability in all environments.

Technical Specifications:

• Output Voltage: AC 3-phase 320-480 V
• Input Voltage: AC 3-phase 380-420 V
• Frequency: 50-60 Hz
• Overload Protection: 40 A
• Operating Temperature: -30°C to +50°C
• Storage Temperature: -50°C to +80°C
• Maximum Operating Altitude: 2000 m
• Dimensions: 195 mm (W) x 320 mm (D) x 110 mm (H)
• Weight: 2.7 kg

Safety and Compliance:

• Standards: EN 61851-1, EN 61851-23, EN 61000-6-2, EN 61000-6-3, EN 301 908-2
• RoHS Compliant: Following EU Directive 2011/65/EU and Amendment 2015/863
